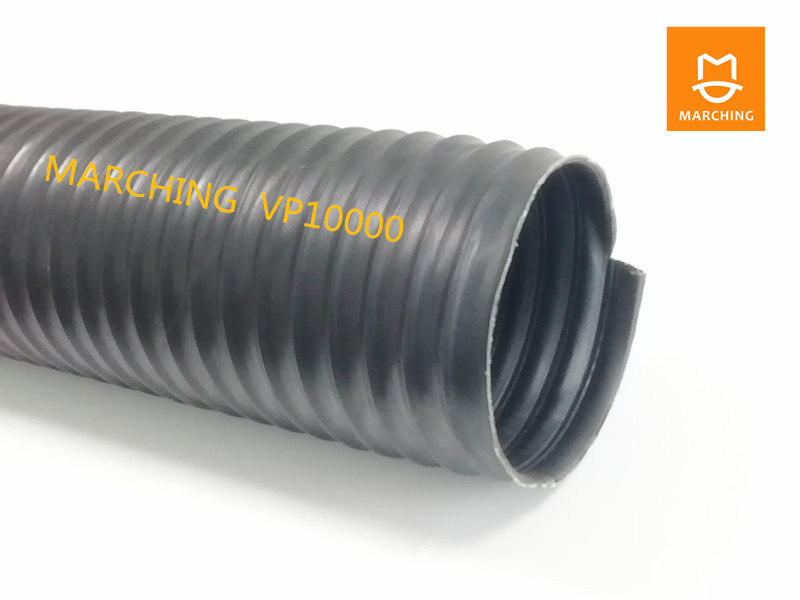

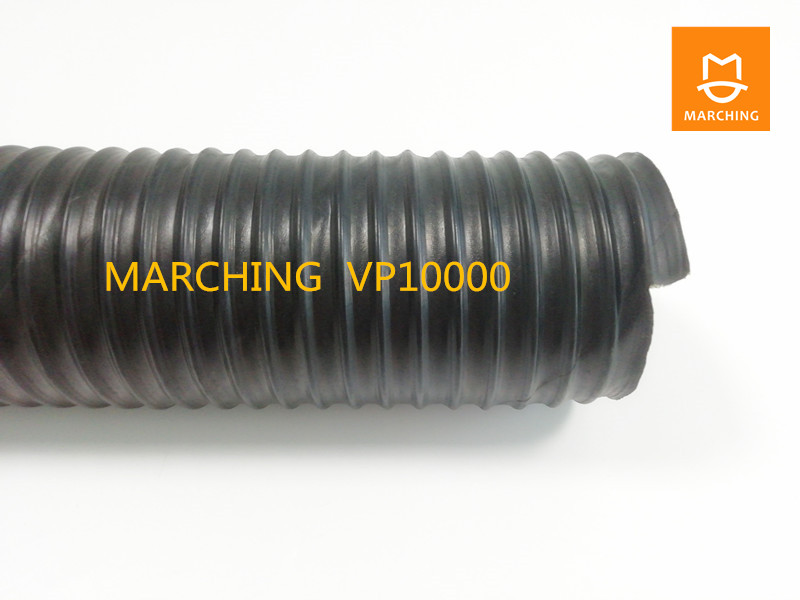

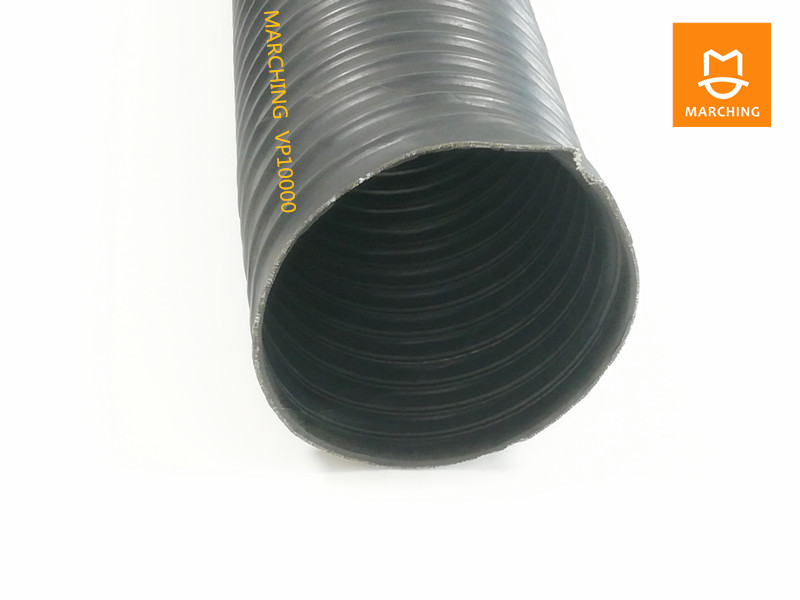

This high vacuum lift hose can lift weight from 30kg to 150kg.
DESCRIPTION
The product details are as per follows:
This high vacuum lift hose can lift weight from 30kg to 150kg.
The hose is made of rubber impregnated synthetic fiber with high strength coil spring wire φ1.83，2.1,2.5,3.1mm(copper-coated).
Vacuum degree is up to 0.8 Bar(subject to size and structure).
Compression ratio is from 3:1 to 4:1(subject to size and structure).
Rating and design need to be confirmed by customers.
PARAMETERS
| Inner diameter(mm) | Weight(kg/m) | Coil length(m) |
| 38 | 0.33 | 3.8 |
| 41 | 0.35 | 3.8 |
| 44 | 0.40 | 3.8 |
| 51 | 0.50 | 3.8 |
| 57 | 0.56 | 3.8 |
| 63 | 0.60 | 3.8 |
| 70 | 0.79 | 3.8 |
| 76 | 0.82 | 3.8 |
| 83 | 0.94 | 3.8 |
| 89 | 0.99 | 3.8 |
| 95 | 1.08 | 3.8 |
| 102 | 1.14 | 3.8 |
| 108 | 1.36 | 3.8 |
| 114 | 1.46 | 3.8 |
| 121 | 1.52 | 3.8 |
| 127 | 1.61 | 3.8 |
| 140 | 1.77 | 3.8 |
| 152 | 2.10 | 3.8 |
| 160 | 2.18 | 3.8 |
| 178 | 2.42 | 3.8 |
| 203 | 2.76 | 3.8 |
| 229 | 2.98 | 3.8 |
| 254 | 3.30 | 3.8 |
| 305 | 4.00 | 3.8 |
