Volfmen Steel Wire Reinforced Suction Hose SP930

This spiral PVC hose is of diverse uses. It can be used as suction hose for transport of air, dust and powders, small chips, solid matter and welding fume. You may find the product on many occasions, such as industrial and household vacuums, building cleaning and drying, welding machines and cleaning machines.

DESCRIPTION
This spiral PVC hose is of diverse uses. It can be used as suction hose for transport of air, dust and powders, small chips, solid matter and welding fume. You may find the product on many occasions, such as industrial and household vacuums, building cleaning and drying, welding machines and cleaning machines.

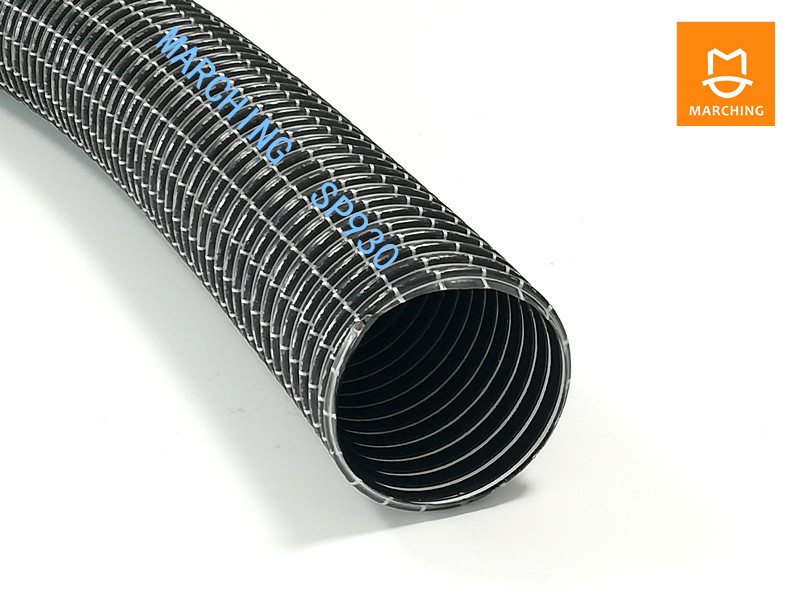

The hose is made of two PVC layers with encased spring steel spiral and additional axial and radial fiber reinforcement. This design provides the product following special characteristics:

※Highly flexible ※high tensile strength ※vacuum resistant

※small bending radius ※pressure resistance ※tear proof

※light weight ※good lye and acid resistance ※durable/long useful life

※kink-proof ※good UV and ozone resistance ※good chemical resistance

※cadmium-free ※discharge electricity with earthing of the spiral ※wear-proof

※smooth on the inside ※flame retardant grade: UL94-HB

Its temperature range varies from -100C to +850C.

The caliber range of the hose is from 25mm to 102mm.

PARAMETERS

Inner diameter(mm)	Outer diameter(mm)	Pressure(bar)	Vacuum(bar)	Bending radius(mm)	Weight(kg/m)	Coil Length(m)
25	31	1.70	0.20	25	0.20	15
28	34	1.60	0.20	28	0.23	15
32	38	1.50	0.20	32	0.28	15
35	41	1.40	0.20	35	0.31	15
38	44	1.40	0.20	38	0.34	15
41	47	1.40	0.18	41	0.37	15
44	50	1.30	0.16	44	0.38	15
51	57	1.30	0.15	51	0.46	15
60	66	1.20	0.14	60	0.51	15
63	69	1.00	0.14	63	0.53	15
70	76	0.90	0.12	70	0.58	10
76	82	0.80	0.10	76	0.68	10
80	86	0.70	0.09	80	0.83	10
89	95	0.70	0.09	89	0.93	10
102	108	0.60	0.08	102	1.00	10
