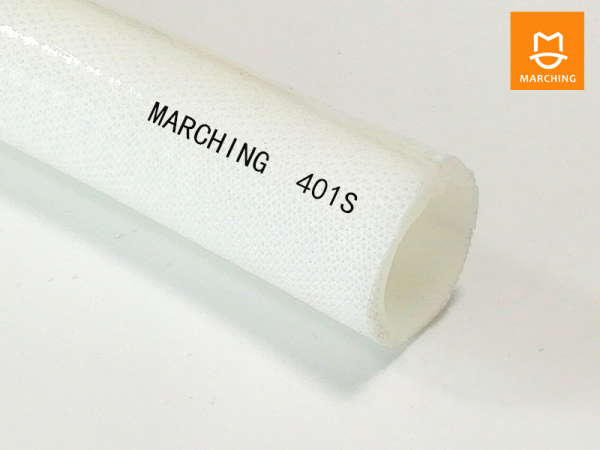

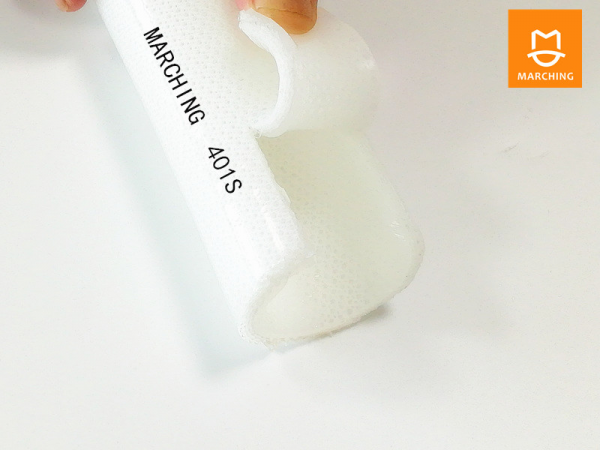

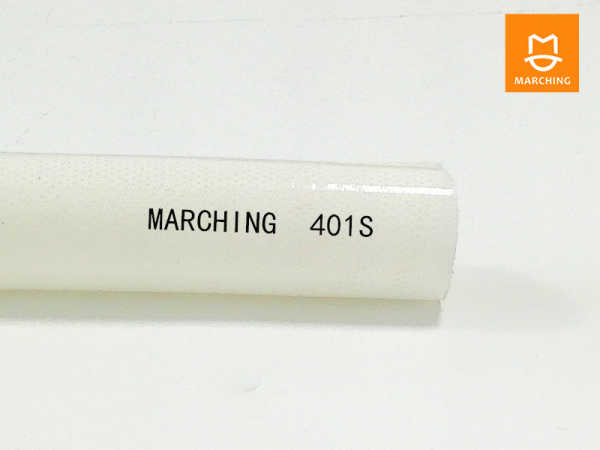

This silicone hose is suitable for conveying liquid material at high pressure in food, pharmacy, cosmetics and biotech industry.
DESCRIPTION
This silicone hose is suitable for conveying liquid material at high pressure in food, pharmacy, cosmetics and biotech industry.
The product is in conformity with food requirement of FDA and medical standard of USP VI.
It is made of four layers of polyester fabrics with one layer of reinforced 304 steel wire and mesh fabric. The inner wall and outer wall are both smooth and transparent.
The temperature range is from -40°C to +220°C.
The caliber range varies from 19mm to 102mm.
PARAMETERS
| Inner diameter(mm) | Outer diameter(mm) | Weight (g/m) | Bending radius(mm) | Burst pressure (bar) | Coil length (m) |
| 19 | 30 | 702 | 52 | ≥29 | 6 |
| 25 | 36 | 870 | 68 | ≥25 | 6 |
| 32 | 43 | 1067 | 94 | ≥22 | 6 |
| 38 | 49 | 1236 | 112 | ≥20 | 6 |
| 51 | 62 | 1601 | 114 | ≥16 | 6 |
| 63 | 74 | 1938 | 181 | ≥13 | 6 |
| 76 | 87 | 2303 | 232 | ≥10 | 6 |
| 89 | 100 | 2668 | 303 | ≥8 | 6 |
| 102 | 113 | 3033 | 382 | ≥7 | 6 |
