This product is suitable for transport and suction of air, smoke, bits of wood, powder, silk-like fabric, and ventilation equipment as well.
DESCRIPTION
This product is suitable for transport and suction of air, smoke, bits of wood, powder, silk-like fabric, and ventilation equipment as well.

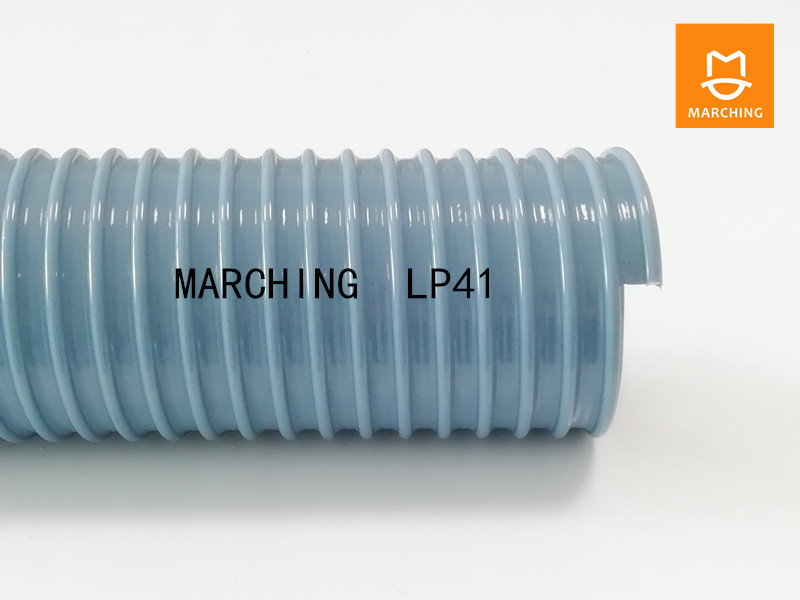

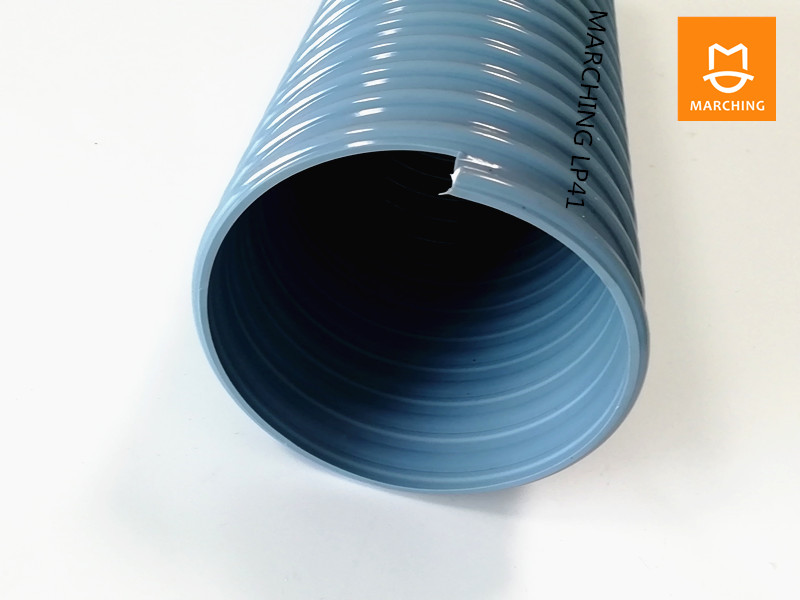

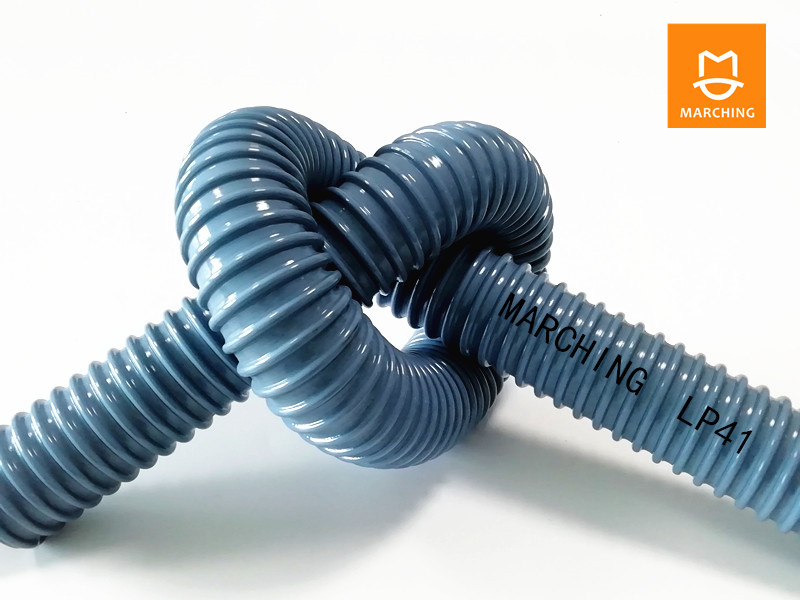

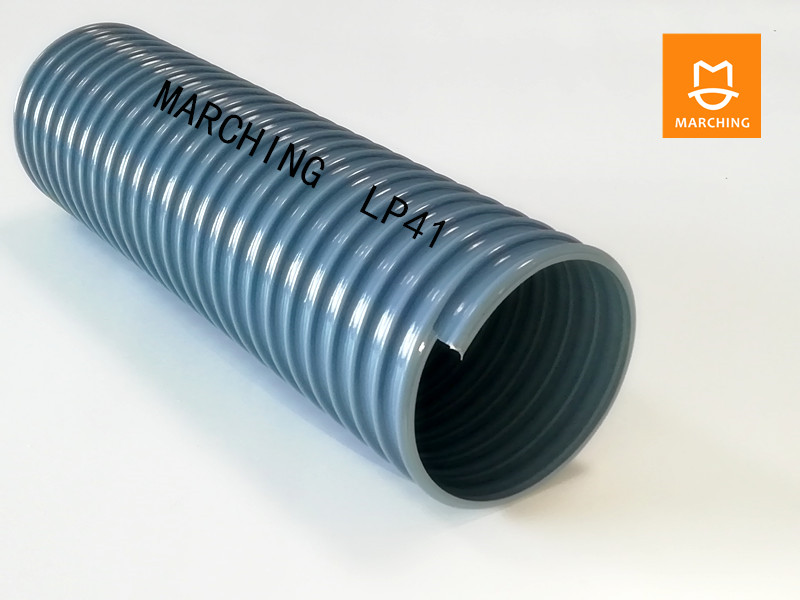

As a PVC flexible hose, it is made of rigid PVC rib screw. It is highly flexible, light in weight and very smooth on the inside.
The temperature range is from -10°C~+60°C.
Customized types: LP41-FR, flame retardant grade: UL94-VO.
The caliber range varies from 20mm to 300mm.
PARAMETERS
| Inner diameter(mm) | Wall thickness(mm) | Bending radius(mm) | Coil length(m) |
| 20 | 0.9 | 20 | 50 |
| 25 | 0.7 | 25 | 50 |
| 30 | 0.7 | 30 | 50 |
| 32 | 0.8 | 32 | 50 |
| 35 | 0.8 | 35 | 50 |
| 38 | 0.8 | 38 | 50 |
| 40 | 0.9 | 40 | 50 |
| 45 | 0.9 | 45 | 50 |
| 50 | 1.0 | 50 | |
| 60 | 1.0 | 60 | 50 |
| 63 | 1.0 | 63.5 | 50 |
| 70 | 1.0 | 70 | 50 |
| 75 | 1.1 | 75 | 50 |
| 80 | 1.1 | 80 | 30 |
| 90 | 1.1 | 90 | 30 |
| 100 | 1.0 | 100 | 30 |
| 110 | 1.2 | 110 | 30 |
| 120 | 1.3 | 120 | 30 |
| 125 | 1.2 | 125 | 30 |
| 130 | 1.2 | 130 | 30 |
| 140 | 1.2 | 140 | 30 |
| 150 | 1.3 | 150 | 30 |
| 160 | 1.3 | 160 | 20 |
| 180 | 1.3 | 180 | 20 |
| 200 | 1.3 | 200 | 20 |
| 250 | 1.3 | 250 | 15 |
| 300 | 1.5 | 300 | 10 |
