Volfmen Plastic Rib Reinforced PVC Hose LP41

This product is suitable for transport and suction of air, smoke, bits of wood, powder, silk-like fabric, and ventilation equipment as well.

DESCRIPTION
This product is suitable for transport and suction of air, smoke, bits of wood, powder, silk-like fabric, and ventilation equipment as well.

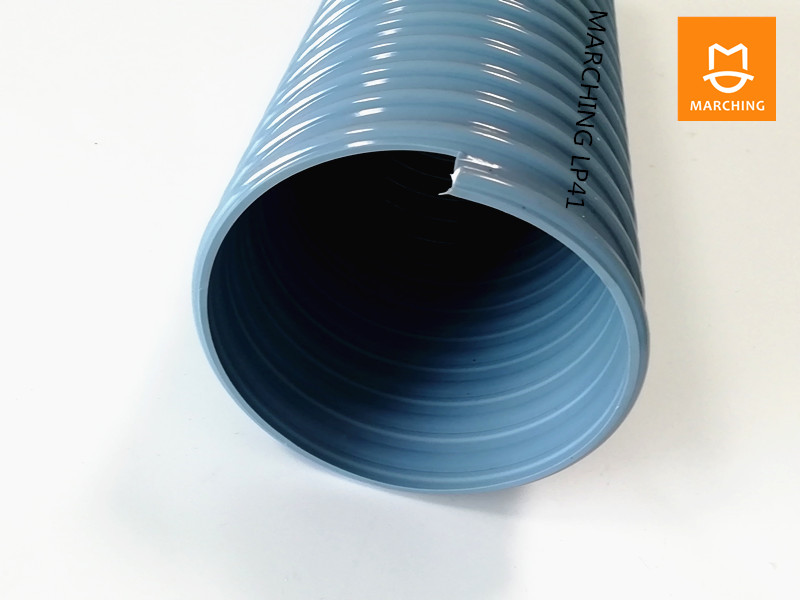

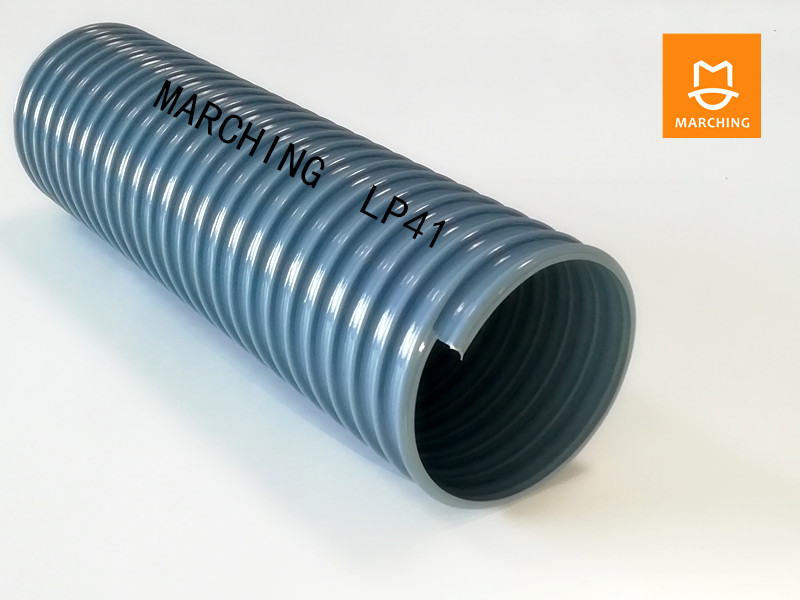

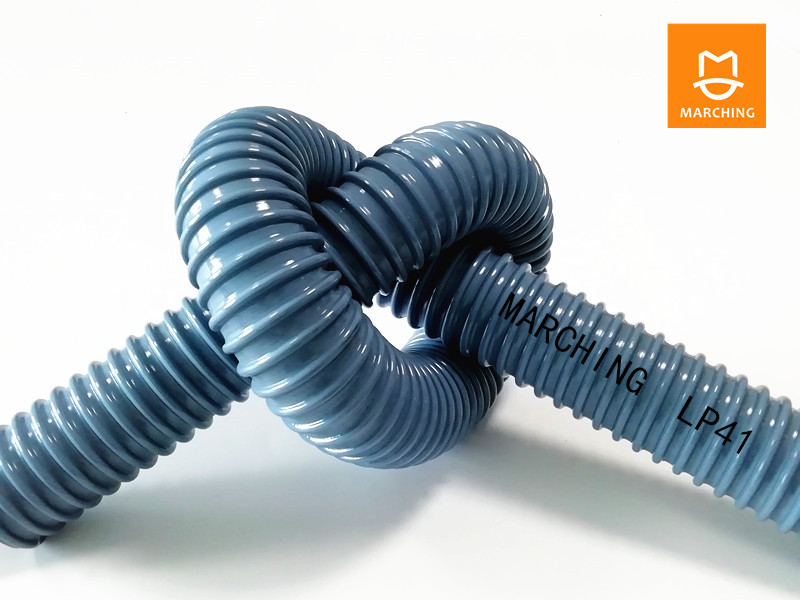

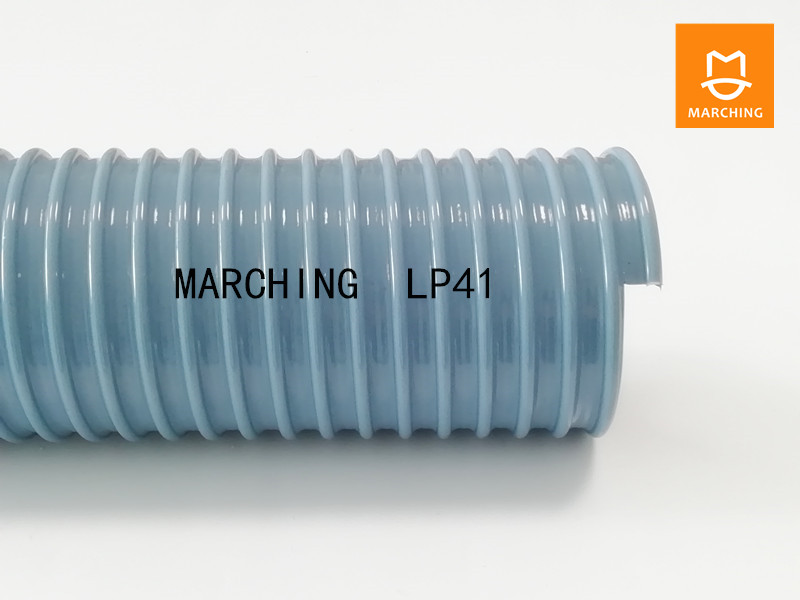

As a PVC flexible hose, it is made of rigid PVC rib screw. It is highly flexible, light in weight and very smooth on the inside.

The temperature range is from -10°C~+60°C.

Customized types: LP41-FR, flame retardant grade: UL94-VO.

The caliber range varies from 20mm to 300mm.

PARAMETERS

Inner diameter(mm)	Wall thickness(mm)	Bending radius(mm)	Coil length(m)
20	0.9	20	50
25	0.7	25	50
30	0.7	30	50
32	0.8	32	50
35	0.8	35	50
38	0.8	38	50
40	0.9	40	50
45	0.9	45	50
50	1.0	50
60	1.0	60	50
63	1.0	63.5	50
70	1.0	70	50
75	1.1	75	50
80	1.1	80	30
90	1.1	90	30
100	1.0	100	30
110	1.2	110	30
120	1.3	120	30
125	1.2	125	30
130	1.2	130	30
140	1.2	140	30
150	1.3	150	30
160	1.3	160	20
180	1.3	180	20
200	1.3	200	20
250	1.3	250	15
300	1.5	300	10
