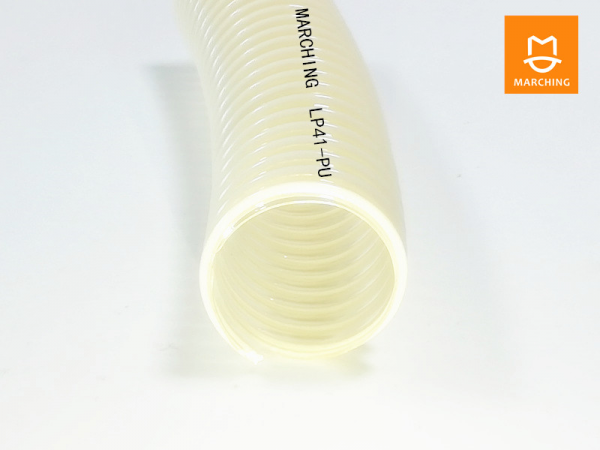

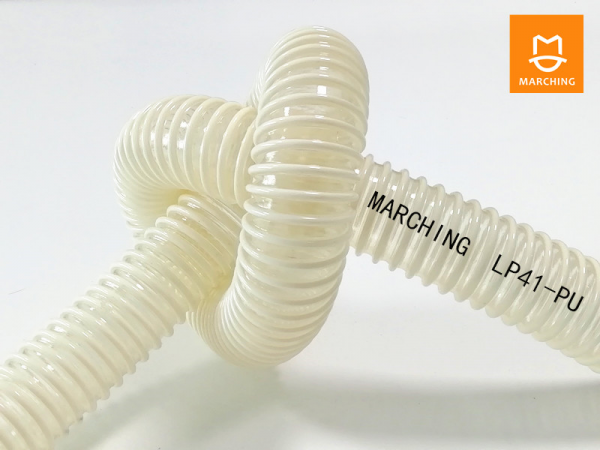

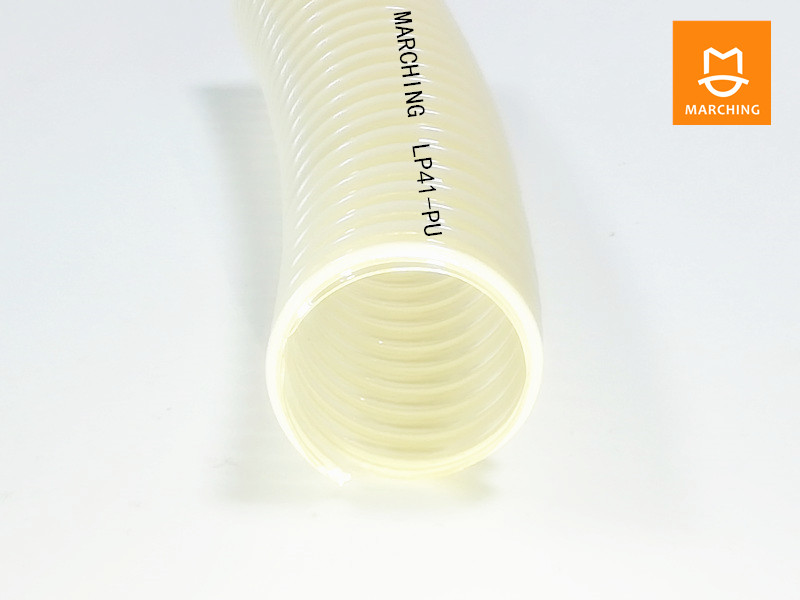

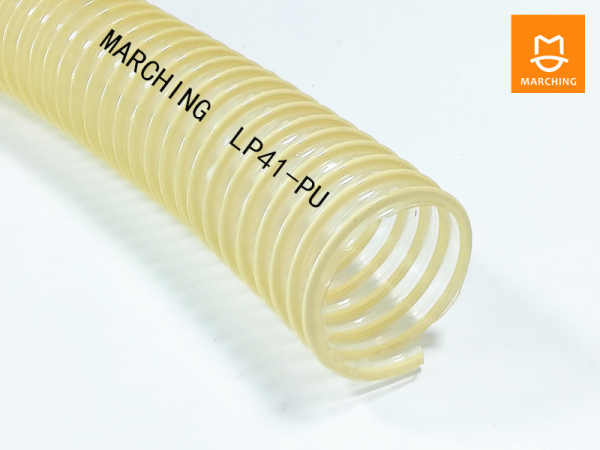

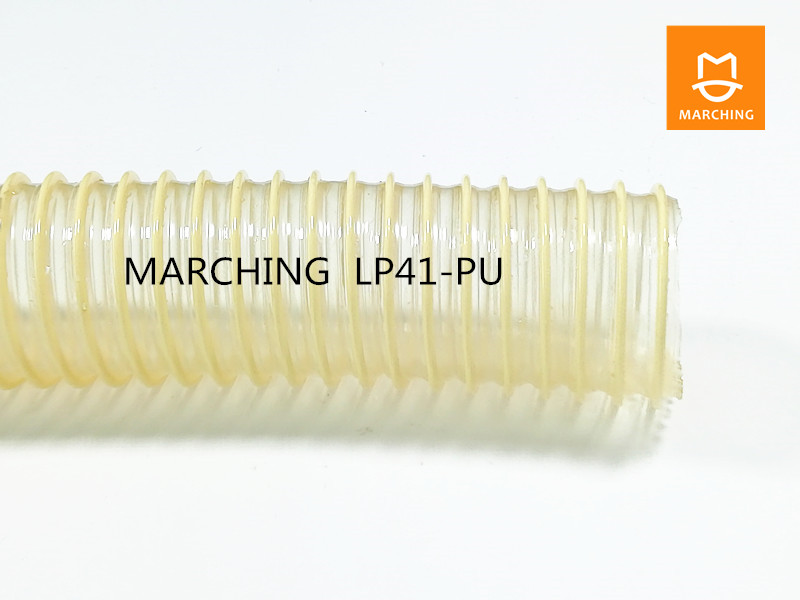

Volfmen Plastic Rib Reinforced Hose LP41-PU

This product is suitable for hose transport of abrasive powder, bulk material, particulate matter and air. It is also suitable for welding mask, textile industry, fiber suctioning, surface preparation, polish finishing/sand blasting, medical equipment/technology, health care industry, and so on.

DESCRIPTION
This product is suitable for hose transport of abrasive powder, bulk material, particulate matter and air. It is also suitable for welding mask, textile industry, fiber suctioning, surface preparation, polish finishing/sand blasting, medical equipment/technology, health care industry, and so on.

The hose is of light weight, wear and microbial resistant. It has excellent chemical corrosion resistance. It does not contain any DBP. With hard plastic wire embedded in the hose wall, the inner surface is very smooth. The hose wall is permanently anti-static, and in compliance with the safe regulation issued by German Wood Trade Committee.

The temperature range is from -20°C to +70°C, short-time up to +80°C.

Customized types: LP41P-PU-AS, anti-static R<109Ω, hose wall permanently anti-static.

The caliber range varies from 20mm to 150mm.

PARAMETERS

Inner diameter(mm)	Outer diameter(mm)	Positive pressure(bar)	Negative pressure(bar)	Bending radius(mm)	Weight(kg/m)	Coil length(m)
20	26	1	0.25	15	0.1	20
25	31	1	0.25	17.5	0.13	20
30	36	0.9	0.25	20	0.14	20
32	38	0.85	0.2	19	0.16	20
35	41	0.8	0.2	27.5	0.17	20
38	45	0.75	0.2	31	0.2	20
40	47	0.75	0.2	40	0.21	20
45	52	0.65	0.2	42.5	0.25	20
50	58	0.5	0.2	45	0.29	20
60	68	0.5	0.16	50	0.43	20
65	71	0.45	0.16	48.5	0.46	20
70	79	0.4	0.16	60	0.5	20
75	84	0.375	0.16	65	0.555	20
80	89	0.35	0.16	70	0.59	20
90	100	0.3	0.14	80	0.67	20
100	110	0.28	0.13	90	0.75	20
125	136	0.25	0.1	107.5	1.1	20
150	162	0.18	0.08	125	1.5	20
