Volfmen High Temperature Suction Hose GF-150

This hose is suitable for conveying dry hot air of drying machines, film blowing machines in plastic industry. It is also suitable for passenger cars, mobile motor homes and yachts.

DESCRIPTION
This hose is suitable for conveying dry hot air of drying machines, film blowing machines in plastic industry. It is also suitable for passenger cars, mobile motor homes and yachts.

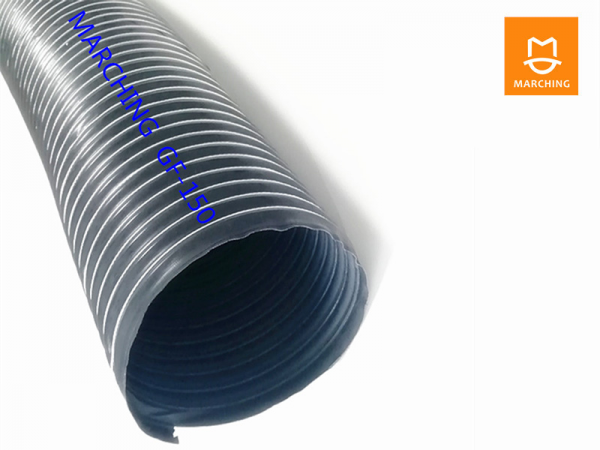

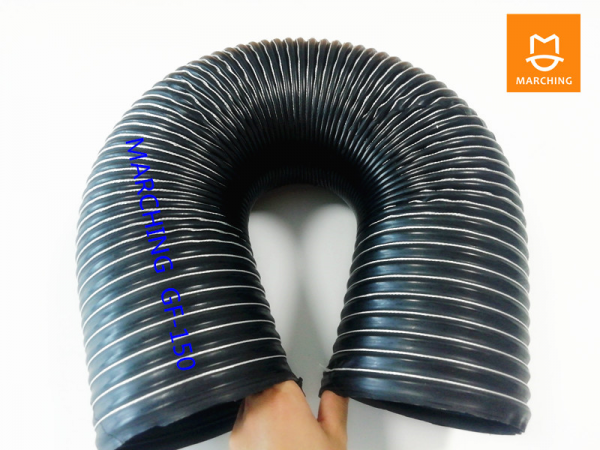

The hose is of smooth inner wall, small wind resistance, light weight, strong elasticity and flexibility. It is resistant to oil, corrosion, wearing and damage. It is made of imported neoprene rubber, and it is non-poisonous and environmental friendly. The hose has two layers, and is fiber reinforced. It has small bending radius, excellent chemical and heat resistance. With smooth inner wall surface, it is very easy to bend, and not easy to tangle up, and after recovery, there is no indentation. Its flame retardant grade is UL94-VO.

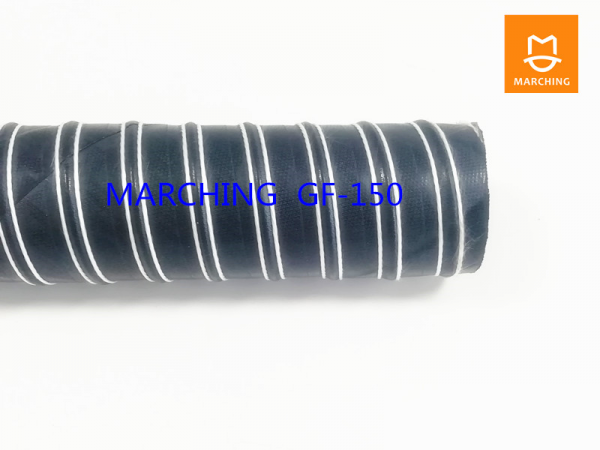

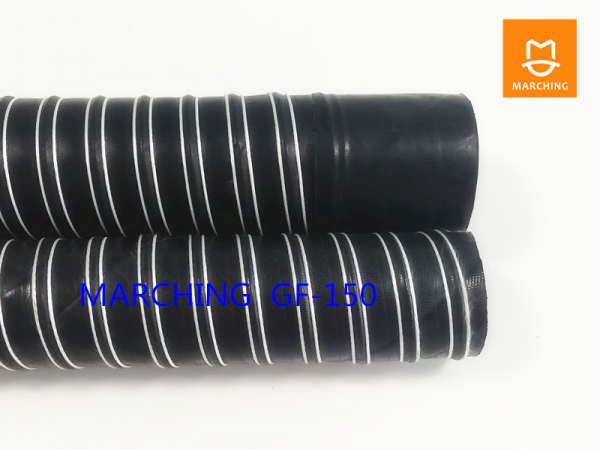

The hose’ s spiral coil is of high flexible steel wire and heat resisting fiberglass wire. The hose wall is composed of one layer 【Item No.: GF(S)-150】or two layers【Item No.: GF(D)-150】of fiberglass cloth coated with neoprene rubber.

The temperature range is from -70°C~+135°C, short-time up to +150°C.

The caliber range varies from 19mm to 305mm.

PARAMETERS

Inner diameter(mm)	Outer diameter(mm)	Positive pressure(bar)	Vacuum(bar)	Bending radius(mm)	Weight(kg/m)	Coil Length(m)
19	22	3.000	0.730	12.5	0.110	4
22	25	3.000	0.720	14.0	0.170	4
25	30	2.800	0.710	17.5	0.190	4
32	36	2.700	0.650	20.0	0.280	4
38	43	2.600	0.600	24.0	0.310	4
44-45	49	2.600	0.580	27.0	0.320	4
50-51	56	2.600	0.520	30.5	0.360	4
57	62	2.500	0.480	33.5	0.430	4
63-65	68	2.400	0.460	36.5	0.490	4
70	75	2.100	0.440	40.0	0.540	4
75-76	81	2.100	0.430	43.0	0.580	4
80	85	2.100	0.420	45.0	0.610	4
83	88	2.100	0.410	46.5	0.630	4
89-90	94	2.000	0.400	49.5	0.690	4
95	100	1.900	0.370	52.5	0.730	4
100-102	107	1.900	0.350	56.0	0.770	4
108	114	1.800	0.330	60.0	0.810	4
114	120	1.500	0.300	63.0	0.850	4
121	127	1.500	0.240	66.5	0.890	4
125-127	133	1.400	0.230	69.5	0.930	4
140	146	1.300	0.200	76.0	1.000	4
150-152	158	1.200	0.170	82.0	1.200	4
178	184	1.000	0.120	95.0	1.430	4
200-203	209	0.700	0.090	107.5	1.650	4
254	260	0.500	0.070	133.0	2.090	4
305	311	0.500	0.070	158.5	2.610	4
