Volfmen Hard PVC Suction Hose VCP204

This hose is suitable for transport of fish products in fishing industry, and it is for heavy load use.

DESCRIPTION
This hose is suitable for transport of fish products in fishing industry, and it is for heavy load use.

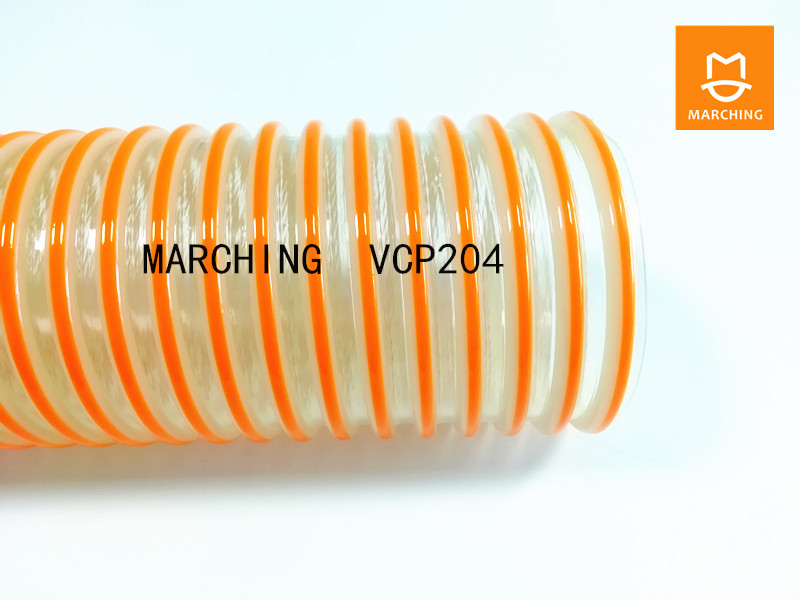

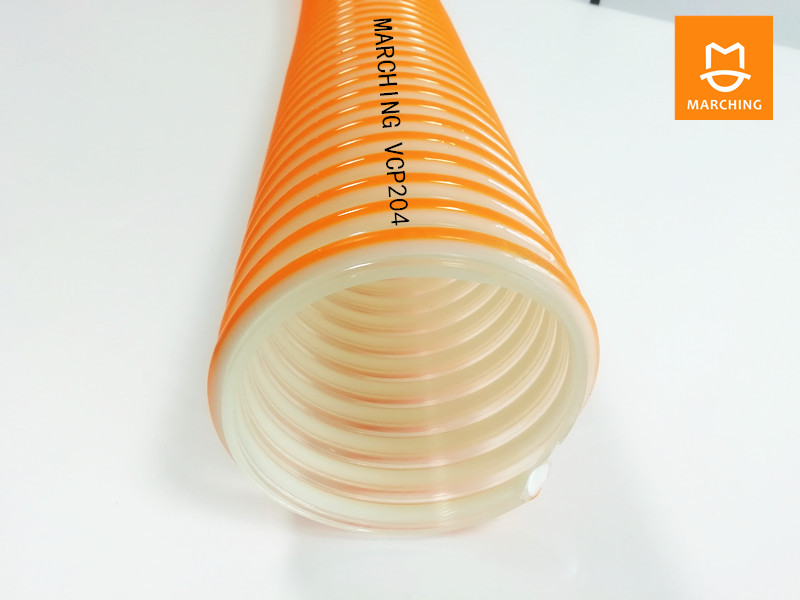

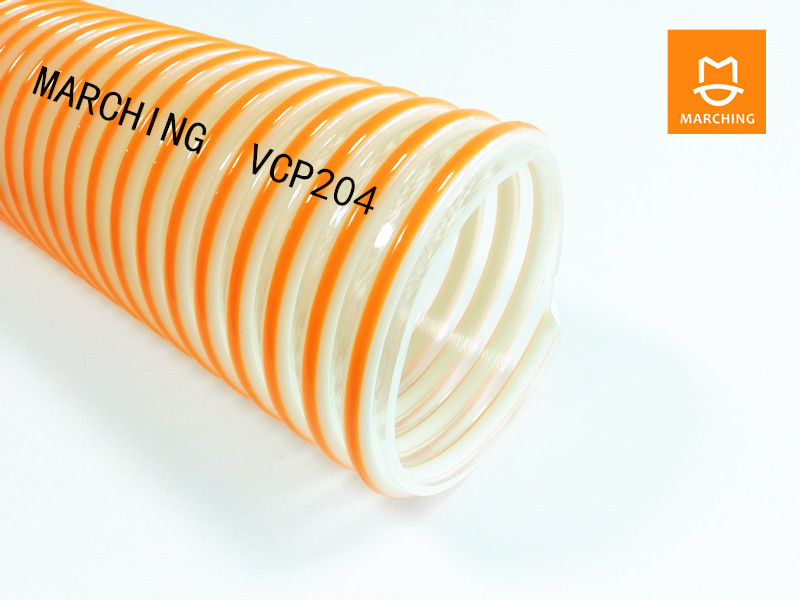

The product is transparent PVC hose. It is shock-proof hard PVC lined screw with smooth inner wall.

The temperature range is from -25°C to +55°C.

The caliber range varies from 102mm to 254mm.

PARAMETERS

ID(mm)	OD(mm)	Working pressure(bar)	Vacuum(bar)	Bending radius(mm)	Weight(kg/m)
102	121.6	2.5	10	200	29
127	149	2.5	9.5	300	36
152	175.4	2	9.5	350	56
203	230.2	2	9.5	600	92
254	290	1.5	9.5	1000	145
